SERIES: FLEXIBLE TYRE / JAW
Flexible Tyre/Jaw Couplings

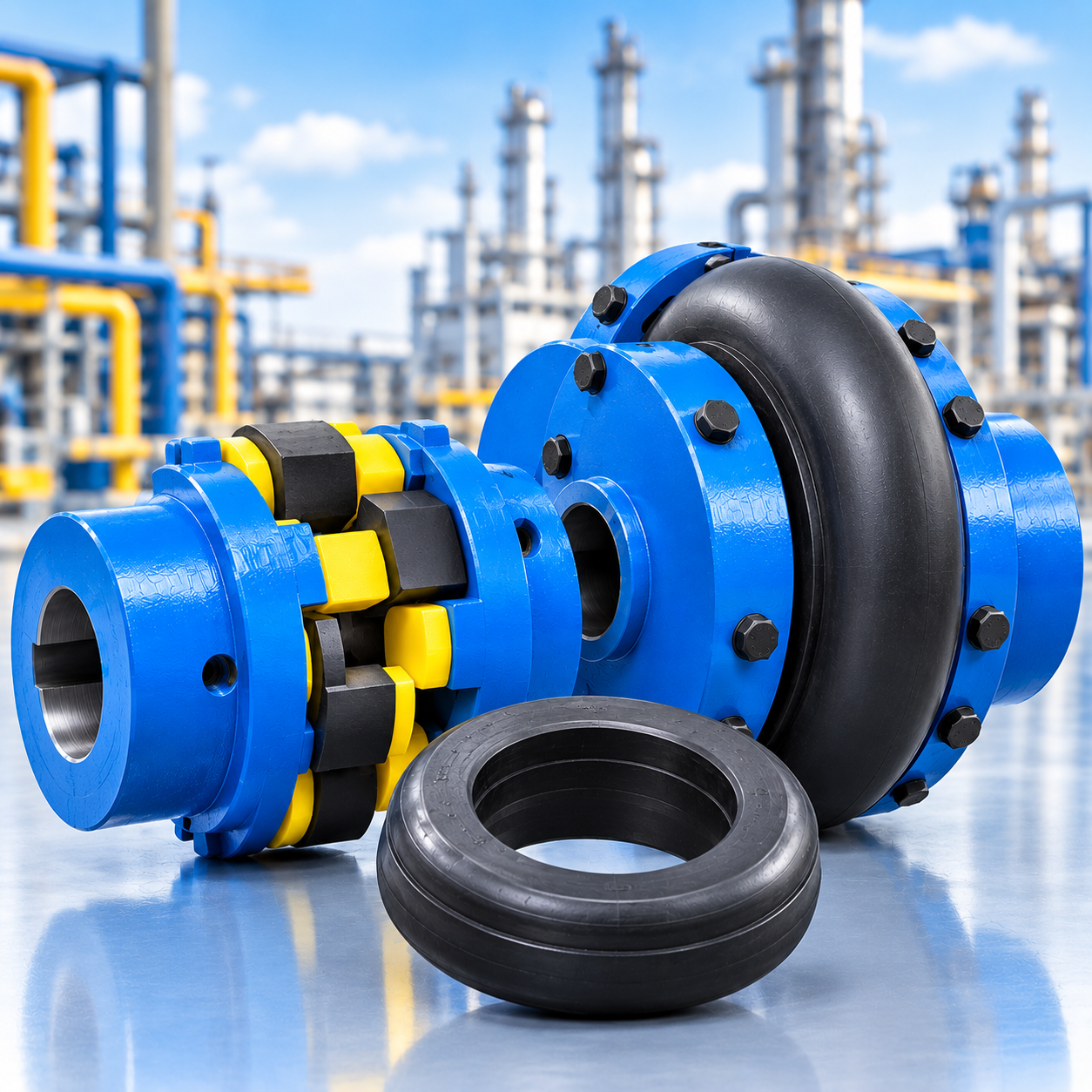

Flexible Tyre Couplings offer the highest tolerance to severe angular misalignments (up to 4°) and substantial axial end-float. The cord-reinforced rubber tyre element can be replaced in less than 15 minutes by merely loosening the clamping flange bolts.
Industry Standard Substitute
Direct Alternative for Fenner Fenaflex Tyre Couplings
Flexible Tyre Couplings offer the highest tolerance to severe angular misalignments (up to 4°) and substantial axial end-float. The cord-reinforced rubber tyre element can be replaced in less than 15 minutes by merely loosening the clamping flange bolts.
Tension cord-reinforced natural rubber tyre element absorbs extreme shock loads.
Complete electrical insulation between driving and driven machines.
Immediate external visual health check without halting operation.
Flexible Tyre / Jaw Technical Parameters
| Nominal Torque Capacity | Up to 15,000 Nm |
| Maximum Shaft Bore | Up to 190 mm |
| Maximum Operating Speed | Up to 4,000 RPM |
| Operating Temperature | -50°C to +50°C |
| Primary Applications | Vibrating screens, slurry pumps, chemical agitators, general conveyor lines |
