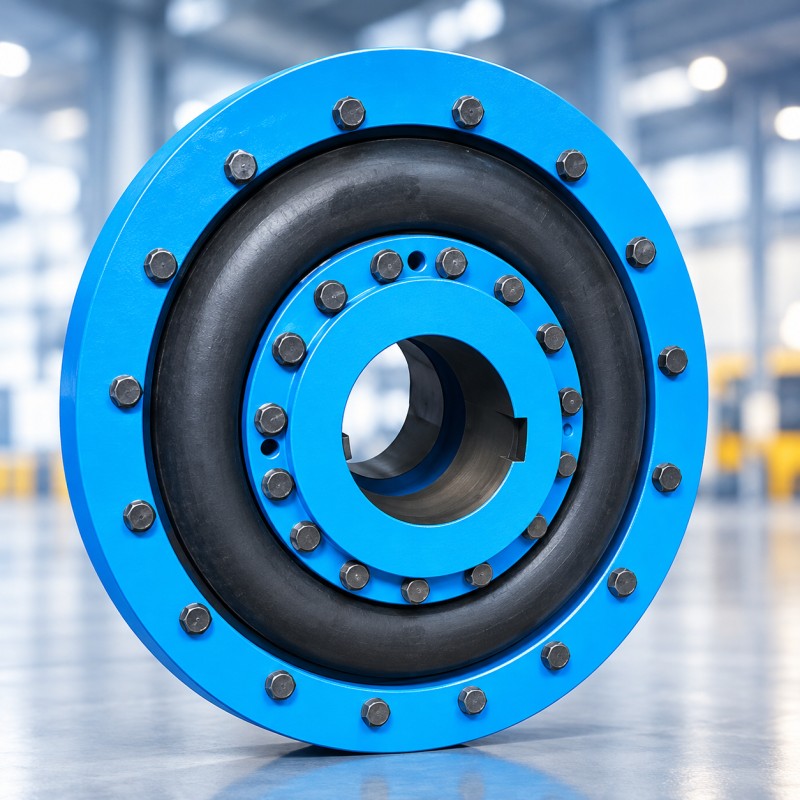

Highly Flexible Coupling, Type-TSS

Fabric reinforced diaphragm & steel lamination elastomeric coupling designed for high torque transmission with low dynamic torsional stiffness.

Home Products Type-TSS
TS / TSS / TSR Range Type-TSS Highly Flexible Coupling
Steel Laminated & Fabric Reinforced Diaphragm
Series: TS / TSS / TSR

Remarkable Multi-Directional Flexibility & Vibration Damping

Fabric reinforced diaphragm & steel lamination elastomeric coupling designed for high torque transmission with low dynamic torsional stiffness.

Critical Speed Attenuation: High damping characteristics and low dynamic torsional stiffness result in a low-frequency drive system, ensuring critical speeds remain well below operational running speeds.
Adjustable Dynamic Stiffness: Torsional stiffness can be custom engineered to suit exact engine or motor harmonics.
Split-Type Element Availability: Quick maintenance split-type rubber elements available for Raw Mills and Coal Mills.
View Dimension Charts Request Datasheet / RFQ
Field Proven Deployments

Industry Applications for TS / TSS / TSR

Proven mechanical reliability across severe shock applications and mission-critical plants.

Marine Sector

Main Propulsion Drives & Auxiliary Generator Drives.

Cement Plants

Raw Mill & Coal Mill Drives, Cement Mill Crusher & Fan.

Thermal Power

Draft / Blow Mill Drives & Fuel Conveyors & Primary Crusher.

Locomotives & Mining

Loco Couplings & Dampers, Compressors, Generators, Shovel & LHM.

Split-Type Rubber Elements Available: Specially manufactured for Raw Mill, Coal Mill, and heavy conveyor servicing. Available Sizes: 970-1, 840-1, 630-1, 500-1, 430-1, 375-1 etc.
Inquire Split Elements
Technical Dimension Chart 1

TS / TSS Highly Flexible Coupling Assembly

All Dimensions in mm | Torques in Kgm
Group Tnom (Kgm) Tmax (Kgm) B1 (Max) B2 (Max) ØA ØC H1 H2 K Lc Ld
1 33 - 50 66 - 90 91 51 22.3 10.1 71 51 10 101 150
2 47 - 67 141 - 171 140 57 25.1 21.2 81 61 10 117 175
3 53 - 77 201 - 231 154 64 28.4 24.0 88 68 12 135 198
4 105 - 140 315 - 420 194 70 33.9 27.2 98 76 16 157 242
5 180 - 225 540 - 685 241 100 37.9 33.9 102 110 24 176 264
6 310 - 410 930 - 1230 311 126 44.4 37.7 126 126 48 207 331
7 480 - 680 1440 - 2040 371 141 51.0 44.0 144 144 81 248 358
8 880 - 1000 2640 - 3000 418 161 58.2 47.1 165 170 64 289 414
9 1150 - 2050 3450 - 6150 491 200 65.8 58.1 200 195 76 337 472
10 2350 - 3500 7050 - 10500 591 240 80.9 68.9 220 226 98 389 571
11 4400 - 7050 13200 - 21150 721 275 92.8 83.5 260 271 103 411 677
12 7400 - 10700 22200 - 32100 811 325 101 95.5 304 333 122 491 825
14 16000 - 30700 50000 - 92100 1061 355 138 114.6 398 414 138 643 914
Technical Dimension Chart 2

Dimension Chart of Rubber Element (TS / TSS / TSR)

Element Diameters (A, B, C, D) & Bolt Hole Pitch PCD (N, O)
Size - TS/TSS/TSR Group ØA B (PCD) C (PCD) ØD O (Nos) ØP N (Nos) ØM
35 / 40 1 153.0 140.0 67.0 52.5 12 7.0 12 7.0
43 / 45 2 181.0 168.0 89.0 73.0 12 7.5 12 7.0
51 / 55 3 206.0 190.0 99.0 82.0 12 8.7 12 8.7
61 / 65 4 238.0 219.0 118.0 97.0 12 9.5 12 9.0
71 / 80 5 280.0 255.0 134.0 108.0 12 11.1 12 11.1
86 / 95 6 338.0 316.0 170.0 143.0 12 15.1 12 11.1
102 / 115 7 392.0 366.0 198.0 169.0 12 17.5 12 14.0
121 / 135 8 458.0 427.0 230.0 192.0 12 18.0 12 14.0
141 / 165 9 528.0 496.0 264.0 226.0 12 18.8 16 14.8
171 / 195 10 628.0 588.0 318.0 272.0 16 21.4 16 19.4
201 / 230 / 235 11 738.0 688.0 372.0 314.5 16 25.3 16 23.3
241 / 275 12 863.0 808.0 440.0 376.5 16 28.7 16 25.7
310 / 360 14 1060.0 990.0 560.0 480.0 16 34.4 16 34.4

* Torsional stiffness can be custom tuned depending on the drive train application harmonics.

Fast Sizing Verification

Request Technical Quotation for Type-TSS

Specify your prime mover kW rating, operating RPM, and shaft diameters for immediate sizing selection.
