Gear Coupling Industrial Application
SERIES: TYPE-TFG, TD, TFG-TD, GCG

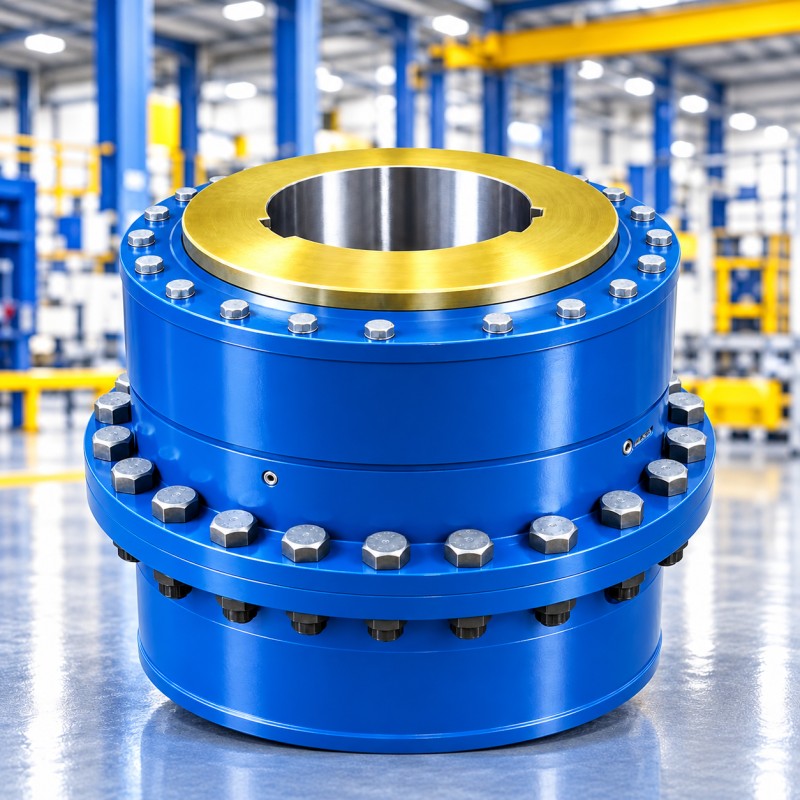

Flexible Gear Coupling, Type-TFG/TD

Flexible Gear Couplings basically consist of two hubs with crowned external teeth and two outer sleeves with internal spur teeth. Standard full flexible gear coupling series TFG accommodates angular & parallel misalignments or a combination of both as well as axial misalignment (end float).

Home Products Type-TFG/TD

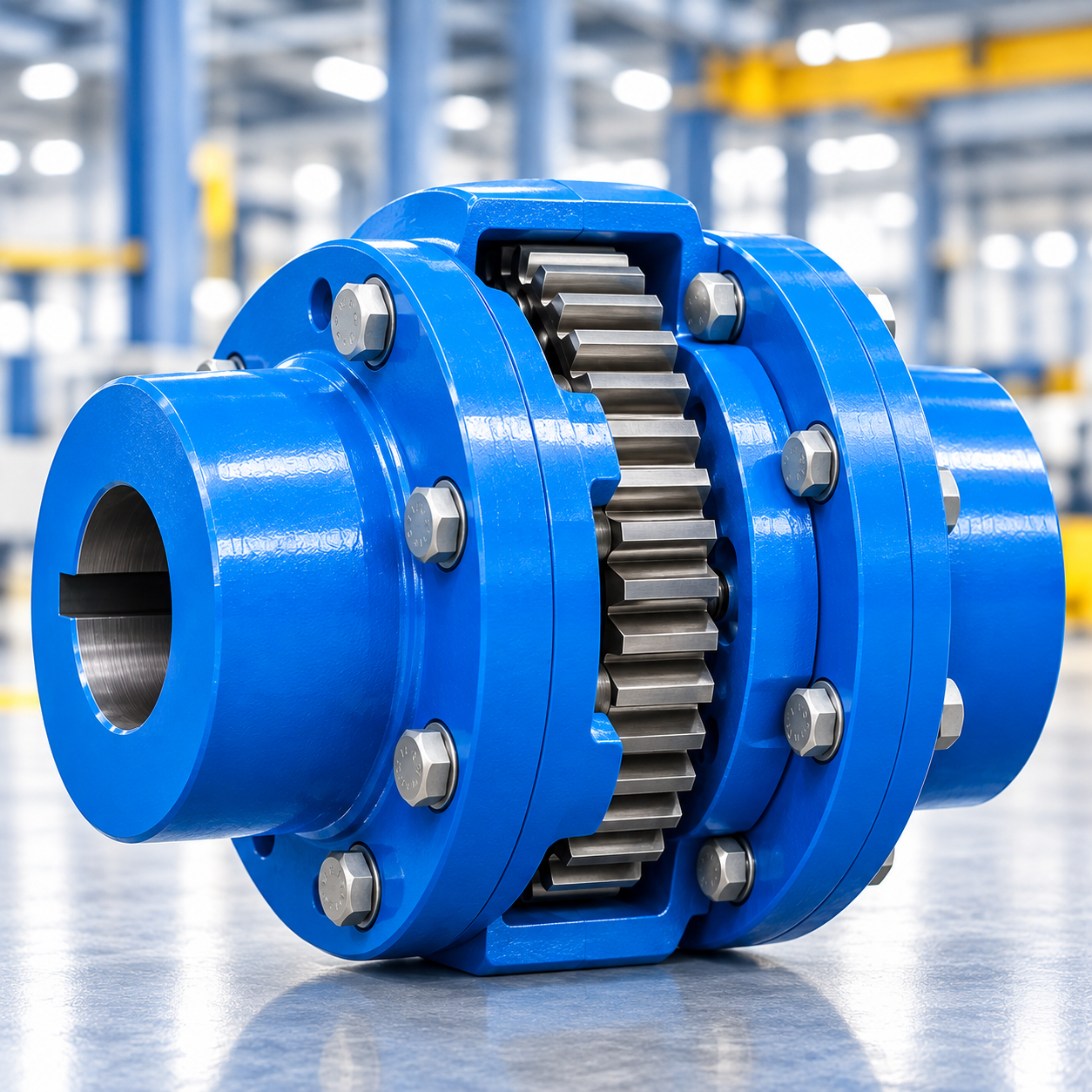

Full Flexible Series Flexible Gear Coupling Type-TFG
Forged Alloy Hubs & Hardened Spur Teeth
High Power Density Driveline

Crowned External Teeth Hubs & Internal Spur Teeth Sleeves

Flexible Gear Couplings basically consist of two hubs with crowned external teeth and two outer sleeves with internal spur teeth. Standard full flexible gear coupling series TFG accommodates angular & parallel misalignments or a combination of both as well as axial misalignment (end float).

Less Backlash & Compact Assembly: Precision tooth profile ensuring minimal backlash with compact physical dimensions.
High Power-to-Weight Ratio: Transmits tremendous torque while maintaining low weight and low mass moments of inertia.
Large Bore Capacities: Accommodates finish shaft bores up to 710 mm on larger transmission drives.
Thermal Resilience: Generally used up to 120°C; can be used for higher temperatures with specialized high-temperature grease or oil lubrication.
Easy Installation & Maintenance: Designed with robust end gaskets and clamping fasteners for quick on-site assembly.
View Complete Dimension Chart Request Quotation / RFQ
Field Proven Deployments

Industry Applications for Series TFG

Operates continuously across heavy industry mills, processing plants, and critical rotating machinery.

Metal Rolling Mills

Continuous stands & roll tables

Cement Plants

Kiln drives, mills & separators

Conveyors & Elevators

Heavy bulk handling systems

Cranes & Hoists

EOT cranes & winch gearboxes

Paper Machinery

Calenders, reels & pulp drives

Rubber & Plastic

Extruders, mixers & kneaders

Punching Machines

Mechanical presses & forging

Fans & Blowers

Fume exhaust & draft fans

Compressors

Heavy rotary & screw units

Process Pumps

Boiler feed & slurry pumps

Max Torque Rating

Up to 1,470,000 Nm

From 550 Nm (TFG-100) to 14,700,000 Nm
Bore Diameter Range

Up to 710 mm

High finish bore capacity
Max Operating Speed

Up to 8,000 RPM

Balanced for high speed machinery
Technical Dimension Chart

TFG Gear Coupling Technical Dimensions (TFG 100 to TFG 119)

All Dimensions in mm | Weight in Kg | Torques in Nm
Coupling Size kW at 100 rpm Max Torque (Nm) Max rpm Pilot Bore Bore Max ØA C BB CF M G J L Solid Hub Wt (kg) Bolt Size
TFG-100 5.0 550 8000 13 55 120 45 50 75 54 3 39 93 4.2 M10 × 4
TFG-101 11.5 1100 6700 21 56 170 55 85 110 67 5 49 115 11.0 M12 × 6
TFG-102 28.5 2720 6100 30 60 185 70 85 125 68 5 62 145 10.0 M12 × 6
TFG-103 51.5 4920 5300 40 75 220 85 105 150 83 5 78 175 26.0 M16 × 6
TFG-104 84.5 8220 4500 54 90 260 105 133 175 124 5 96 215 41.0 M16 × 8
TFG-105 150 14320 3950 60 110 290 118 155 200 136 10 108 233 63.0 M20 × 8
TFG-106 230 21900 3500 75 125 320 125 175 230 150 10 117 283 95.0 M20 × 10
TFG-107 390 37280 3150 90 140 350 140 205 260 174 10 134 293 120.0 M20 × 10
TFG-108 515 49180 3000 105 160 380 165 230 300 187 10 147 333 160.0 M24 × 10
TFG-109 644 61500 2600 125 180 430 185 250 330 186 10 158 343 210.0 M24 × 12
TFG-110 950 90890 2300 140 220 480 180 330 390 214 10 171 370 260.0 M24 × 12
TFG-111 1260 120600 2100 160 240 540 200 300 445 245 10 181 410 350.0 M24 × 16
TFG-112 1600 152800 1900 180 300 590 240 400 490 289 10 238 498 710.0 M30 × 14
TFG-113 2300 270400 1650 200 330 660 280 440 555 312 15 241 635 960.0 M30 × 16
TFG-114 3060 388000 1400 220 370 730 280 500 610 341 15 265 575 1320.0 M30 × 18
TFG-115 4705 465000 1050 250 410 790 320 540 690 385 16 003 655 1700.0 M30 × 18
TFG-116 5500 650900 1150 300 455 900 350 625 755 423 20 533 720 2550.0 M36 × 18
TFG-117 9000 850900 1050 375 530 1000 400 720 855 489 20 064 620 3620.0 M36 × 18
TFG-118 11000 1130000 950 450 610 1130 450 810 950 533 20 428 920 4660.0 M36 × 18
TFG-119 15500 1470000 825 530 710 1250 465 910 1050 559 30 444 1000 6380.0 M48 × 16

* Series TFG-100 to TFG-110 features standard flanged design; TFG-111 to TFG-119 incorporates heavy-duty end retainer covers and positive synthetic gaskets.

Fast Sizing Support

Request Quotation for Type-TFG

Specify your coupling size (TFG-100 to TFG-119), kW @ RPM, or shaft diameter requirements.
