SERIES: TYPE-TWN (TWN 105 & OVER)

Pin and Bush Coupling, Type-TWN

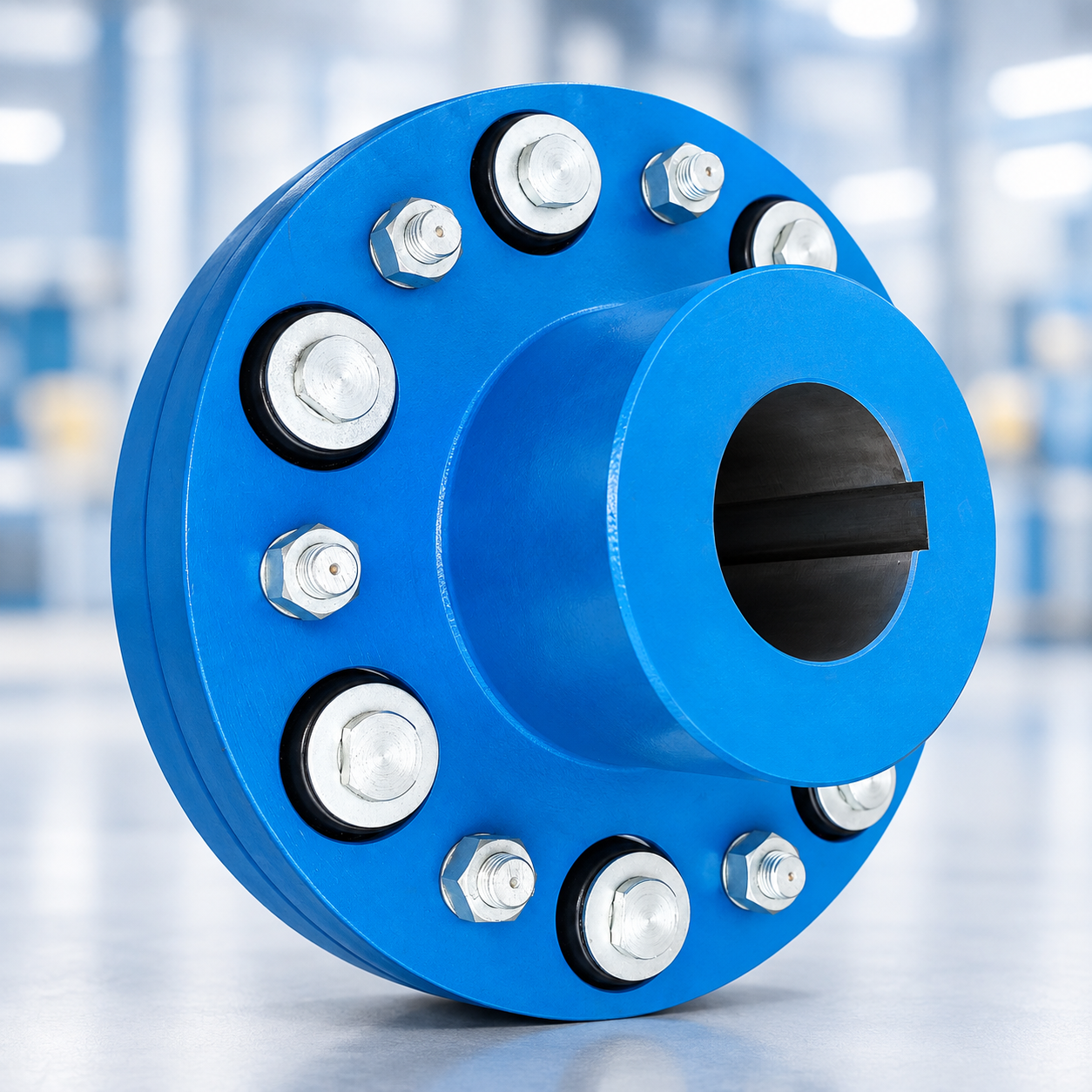

The Type-TWN Pin and Bush Coupling operates with high-tensile coupling bolts and elastomeric rubber bushes fitted over the pins. Pins are rigidly fastened with nuts to one flange half and kept loose in the mating flange pockets. The two halves are dissimilar in construction, designed to connect shafts experiencing small parallel, angular, or axial misalignments while effectively absorbing operational shocks and vibrations.

Home Products Type-TWN

Fail-Safe Construction Type-TWN Pin and Bush Coupling

Torque Range: 20 to 1,30,000 KGM

Electric Motor & Heavy Machinery Drive

Rugged Pin & Bush Coupling for Severe Shock & Reversing Operations

Reversing Operation Independence: Operates independently of the direction of rotation, making it ideal for bi-directional and reversing drives.

Low Weight & Inertia: Optimized mass moments of inertia with options for Steel or Cast Iron hub configurations.

80 or 90 Shore Elements: Close-fitting flexible rubber bushes tuned for optimal dynamic damping.

Plug-in & Hazardous Atmosphere Ready: Suitable for blind plug-in bell housing assembly and certified for potentially explosive atmospheres.

Mounting Versatility: Suitable for horizontal or vertical operation with parallel or taper bore options, plus brake drum or disc attachments.

View Complete Dimension Chart Request Quotation / RFQ

Industry Applications

Engineered for Heavy Equipment Drive Trains

Frequently used to connect prime mover motors and gear shafts to industrial driven machinery.

Pumps

Centrifugal & heavy process slurry pumps

Fans

Boiler ID/FD fans & industrial ventilation

Conveyors

Heavy plant material handling belts

Crushers

Heavy impact stone & mineral crushers

Mills

Ball mills, pulverizers & rolling mills

Standard Torque Range

20 – 1,30,000 KGM

700 Nm to 3,65,000 Nm rating

Operating Orientation

Vertical & Horizontal

Reversible plug-in design

Element Hardness

80 or 90 Shore

Close-fitting flexible rubber bushes

Technical Dimension Chart

Dimensions Chart for Pin and Bush Coupling (Type-TWN)

Torque in Nm | Speeds in RPM | Dimensions in mm | Weight in Kg

Size	Torque (Nm)	Speed (rpm)	Bore ØD Min	Bore ØD Max	ØA	ØB	T	L	LG	S	Weight (kg)	No. of Pins
TWN105	20	10000	—	32	105	53	13	45	53	3	1.50	06
TWN120	35	9000	—	40	120	65	15	58	100	3	3.20	06
TWN144	90	7900	—	50	144	79	16	55	113	3	4.50	10
TWN172	150	5900	—	55	172	85	20	60	123.5	3.5	6.7	08
TWN190	200	5300	—	70	176	102	20	70	140.5	3.5	8.7	10
TWN197	300	5000	—	80	197	120	20	80	183.5	3.5	12.0	12
TWN222	550	4500	—	95	222	130	26	90	180.5	3.5	19.0	11
TWN254	750	4400	—	100	254	160	28	100	233.5	3.5	26.5	12
TWN285	1200	3900	40	110	285	164	32	110	234.5	4.5	39.0	11
TWN320	1500	3500	55	125	320	180	32	105	254.5	4.5	53.0	12
TWN360	2100	3100	65	135	360	203	40	140	284.5	4.5	70.0	10
TWN400	3200	2800	75	150	400	233	42	160	324.5	4.5	110.0	14
TWN450	4500	2500	85	170	450	263	52	160	385.5	5.5	140.0	12
TWN500	6000	2200	95	190	500	293	52	233	465.5	5.5	217.0	14
TWN560	8500	2000	100	210	590	350	68	220	448.0	6.3	274.0	12
TWN630	12000	1800	100	235	630	390	68	240	489.0	6.3	352.0	14
TWN710	18000	1600	110	250	710	393	80	280	521.3	7.0	507.0	14
TWN800	25000	1400	125	280	800	423	80	290	551.3	7.0	670.0	16
TWN900	35000	1200	140	310	900	483	90	330	647.5	7.5	940.0	16
TWN1000	45000	1000	160	340	1000	595	80	350	707.5	7.5	1200.0	18
TWN1120	60000	900	160	370	1120	593	100	380	746.5	8.5	1470.0	18
TWN1250	75000	800	180	400	1250	615	100	420	849.5	8.5	1850.0	20

Fast Sizing Support

Request Quotation for Type-TWN

Specify your TWN size (TWN105 to TWN1250), torque rating, or shaft diameters (min/max bore).
