SERIES: TAC & TCD FLEXIBLE

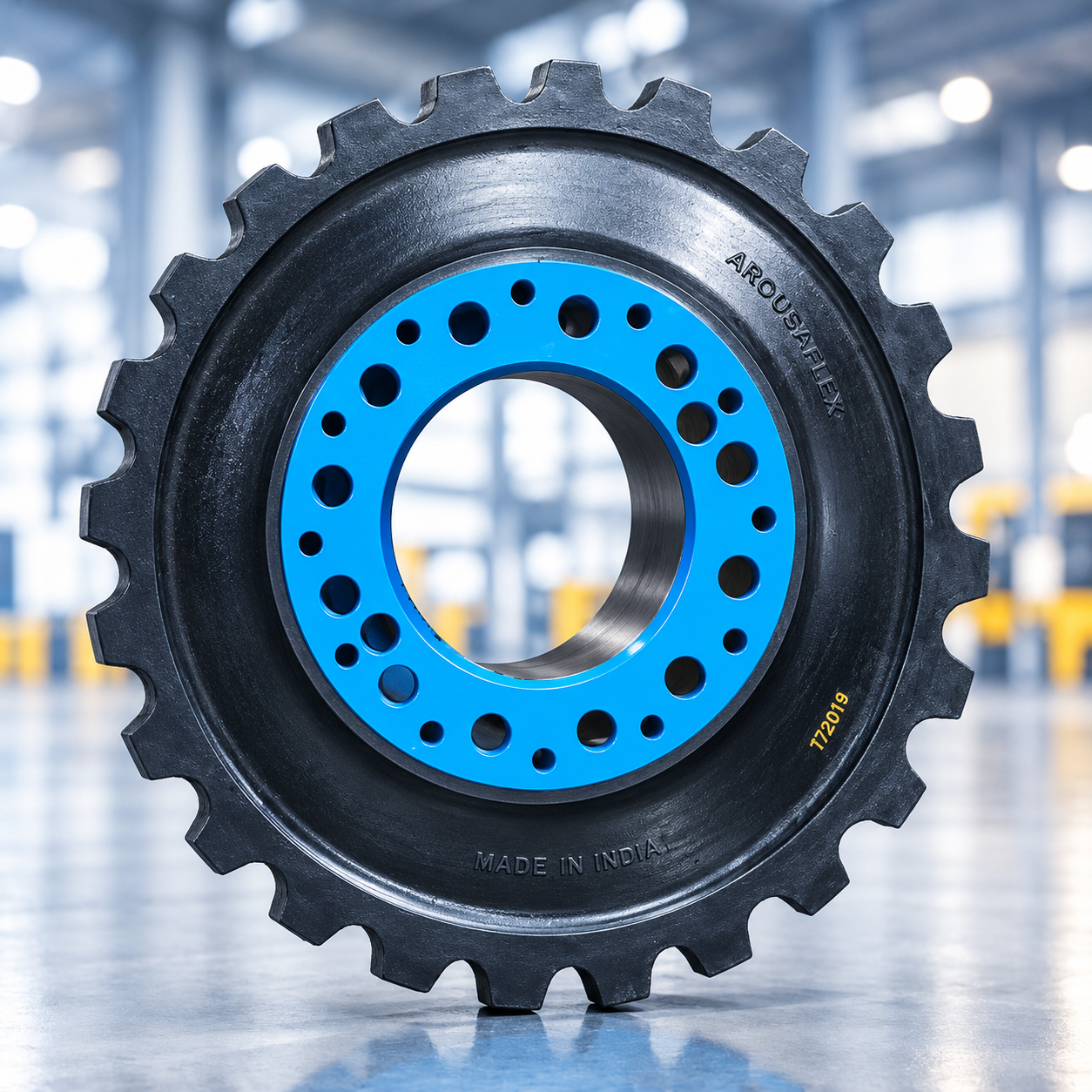

TAC Flexible Coupling

Axial pluggable highly flexible coupling with vulcanized inner disc and toothed outer radius for complete shaft displacement compensation.

Home Products Type-TAC

Axial Pluggable Design TAC Flexible Coupling

Plug-in Toothing & SS Bush Inserts

ISO 9001:2015 Certified Manufacturing

Axial Pluggable Highly Flexible Coupling with Vulcanized Disc Element

Axial pluggable highly flexible coupling with vulcanized inner disc and toothed outer radius for complete shaft displacement compensation.

Easy Installation: Simplified plug-in assembly allowing rapid drive alignment.

High Damping Character: Absorbs destructive torsional oscillations across continuous operations.

Multi-Directional Misalignment: Compensates maximum axial, radial, and angular shaft displacements.

Zero Maintenance & No Lubrication: Dry elastomeric design with zero oiling or grease requirements.

Field Applications

Proven replacement across rotary screw compressors, generator sets, and industrial drives.

Standard direct replacement for Atlas Copco portable and stationary screw compressors including XAVS 900, V1200, and related compressor ranges.

Direct flywheel-to-shaft pluggable connection dampening engine ignition shock pulses and torsional harmonics.

Centrifugal pumps, process fans, with high-duty machinery requiring electrical insulation and zero lubrication.

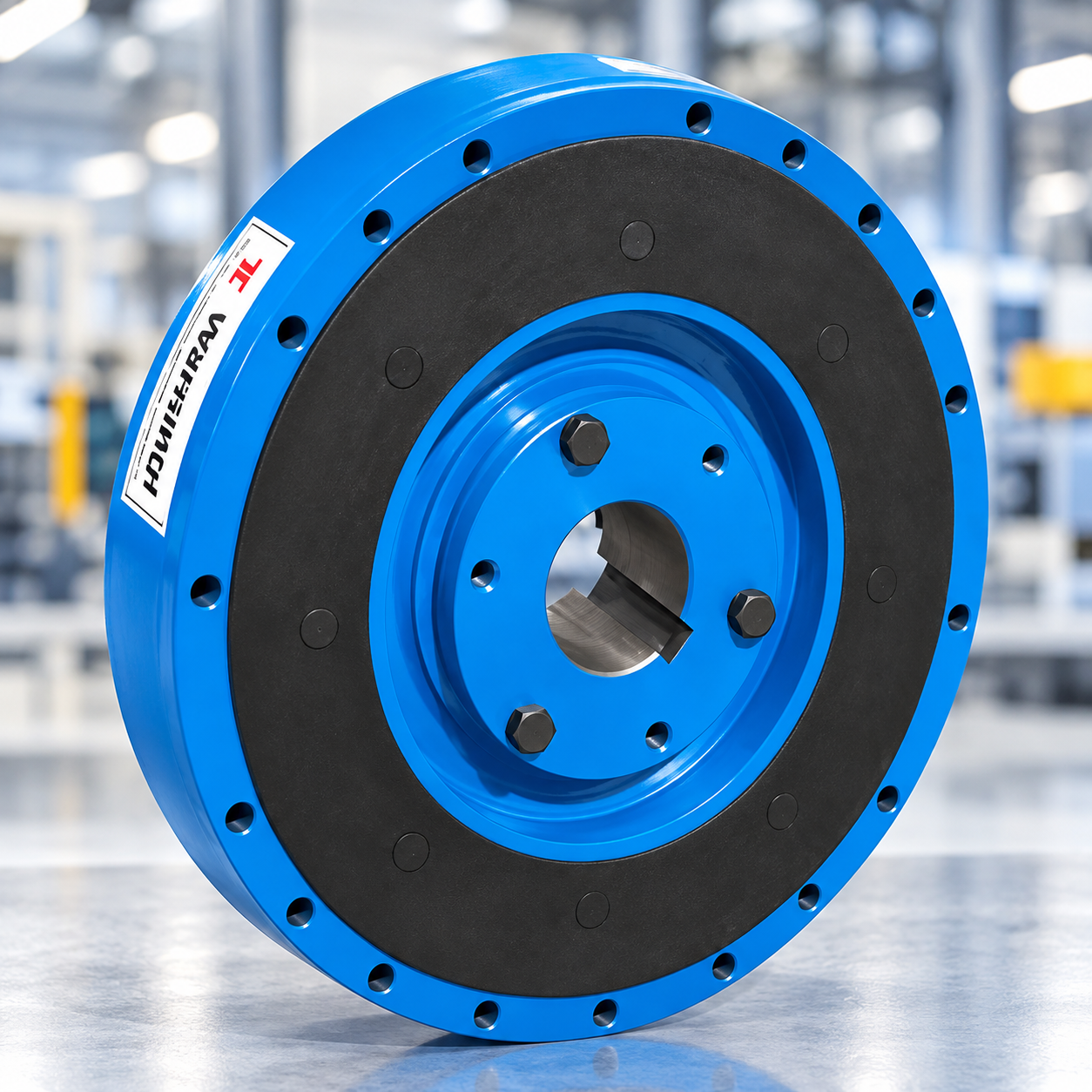

TCD type coupling is a specialized combination of metal and rubber-bonded flexible elements suitable for heavy torque transmissions.

Technical Dimension Chart 1

All Dimensions in Millimeters (mm)

Size	Type	ØA (mm)	ØB (mm)	PCD C (mm)	ØD (mm)	N (Nos)	ØP (mm)	L (mm)	G (mm)	T (Rubber Teeth)
TAC 1515	TC	270	132	94	71	06	11	46	35	24
TAC 1915SP	TC	270	132	110	84.9	06	13.5	49	25	24
TAC 1511	L	286	147.5	115	95	12	11	40	36	16
TAC 4XP	AC	303	142	120.5	95	12	13	76	43.5	24
TAC 330	TC	332	—	132	98	08	16	40	40	24
TAC 330SP	TC	332	—	155	94	12	13	42	40	24
TAC 1913	L	332	175	135	110	12	14	55	60	16
TAC 6	AC	404	202	159	126	12	17	102	60	24
TAC 6.5	AC	405	242	185	151	12	17.5	80	70	24
TAC 8-2	CF-1000	408	145	130	106	06	13	50	55	24
TAC 430	VN	428	180	150	121	20	13.5	58	42	24
TAC 7	AC	439	270	195	161	12	17.5	90	64	24
TAC 3010	L	442	248	180	150	16	18	90	70	24
TAC 2613	L	442.5	248	190	165	12	18	63	58	24
TAC 3710	L	549	320	250	205	16	22	115	96.5	24

Technical Dimension Chart 2

Metal & Rubber Bonded High Torque Assemblies

Size	Type	ØA (mm)	B (mm)	G (mm)	ØD (mm)	ØE (mm)	ØF (mm)	PCD C (mm)	N (Nos)	ØP (mm)
TCD 352	TC	353	70		80	—	—	333.4	12	10.4
TAC 800	GBD	352.3	139		—	124	304	333.4	08	11.0

* TCD type coupling constructed with aluminium hub, steel insert, and outer ring sleeve bonded to high-damping elastomeric compound.

Fast Sizing Support

Specify your TAC element size (TAC 1615 to TAC 3710 / TCD 352 / TAC 800) or mention compressor model.
