Type TEF Industrial Application
Series: TYPE-TEF

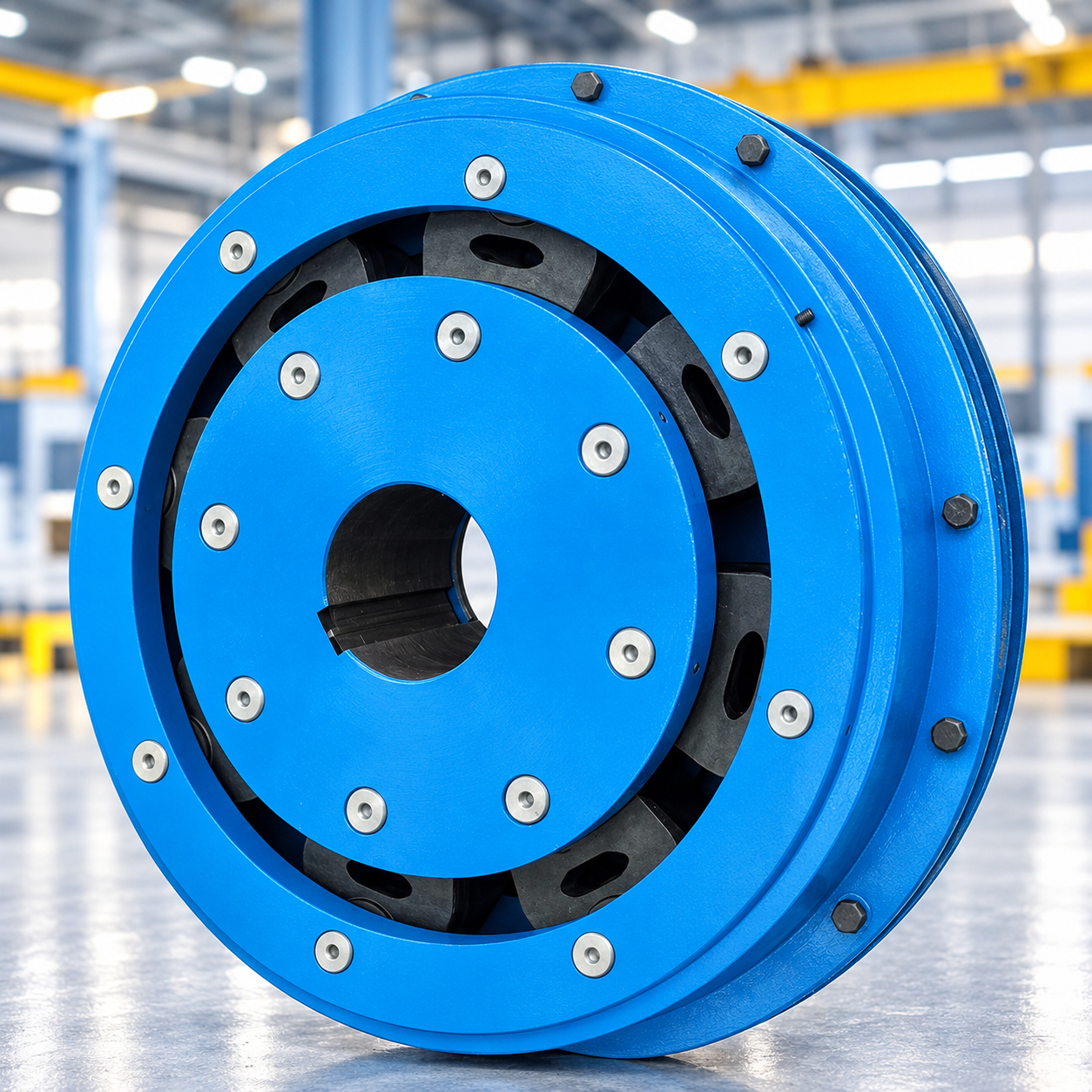

TEF Highly Flexible Coupling

The TEF Highly Flexible Coupling segment is an engineered combination of high-grade rubber and fabric that provides exceedingly high power density, causing optimal vibration damping and directional flexibility across demanding drives.

Home Products Type-TEF
Rubber & Fabric Segment Type-TEF Highly Flexible Coupling
High Power Density & Flange Mount
Piston Engine Drive Specialist

Optimal Vibration Damping & Exceptional Torque Transmission

The TEF Highly Flexible Coupling segment is an engineered combination of high-grade rubber and fabric that provides exceedingly high power density, causing optimal vibration damping and directional flexibility across demanding drives.

High Torque Transmission: Specially advantageous for heavy power transmission with low dynamic resistance.
Piston Engine Optimized: Specifically designed for drives driven by internal combustion reciprocating piston engines.
Simple Flange Connection: Designed for easy bolted connection directly onto flywheel and shaft drive flanges.
Zero Lubrication & Low Maintenance: Completely dry operating coupling requiring no oiling or greasing.
Very Low Torsional Stiffness: Protects gearboxes and driven shafts by eliminating peak resonance amplitudes.
View Rubber Segment Dimensions Request Quotation / RFQ
Field Proven Deployments

Industry Applications for Type-TEF

Targeted for critical drives requiring high displacement accommodation and dampening.

DG Sets

Diesel generator drives & alternators

Marine Engine

Main and auxiliary marine systems

Cement Mill

Continuous plant mill transmissions

Pumps

High pressure & heavy process pumps

Compressors

Reciprocating & screw compressors

Nominal Torque

700 – 15,000 KGM

High power density delivery
Operational Speed

2,880 – 1,175 RPM

Versatile drive range
Rupture Torque

6 to 9 Times

Of Nominal Torque Rating
Technical Dimension Chart

TEF Rubber Segment Dimensions Chart

All Dimensions in Millimeters (mm)
Size A (mm) B (mm) C (mm) D (mm) E (mm) F (mm)
TEF 70 143 110 73 49.5 22.10 20.10
TEF 157 157 103.8 79 64.5 24.50 21.50
TEF 500 242 155 133 125 40.03 34.06
TEF 700 242 155 133 125 40.03 34.06
TEF 900 270 186 143.5 130 44.00 40.00
TEF 1100 270 186 143.5 130 44.00 40.00
TEF 1500 345 185 221 130 44.00 40.00
Fast Sizing Support

Request Quotation for Type-TEF

Specify your TEF size requirement (TEF 70 to TEF 1500) or provide drive parameters (kW, RPM, Flywheel spec).
