SERIES: TYPE-TRG (TYPE V & TYPE H)

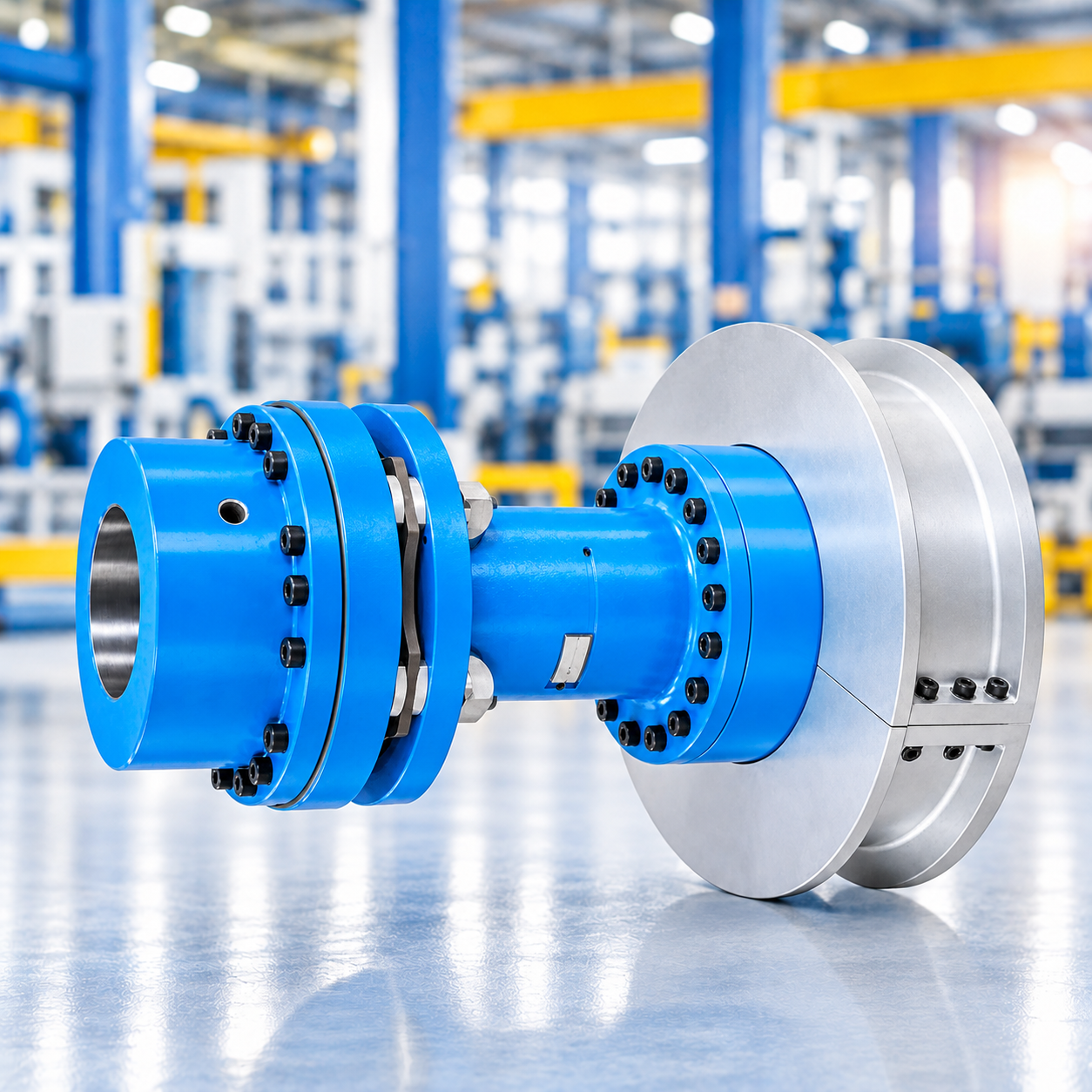

Resilient Coupling, Type-TRG

The Type-TRG Resilient Coupling is engineered with a high-strength tapered alloy spring grid seated in precision-curved hub grooves. Under light loads, the grid contacts the outer edges of the hub teeth; under heavy shock overloads, the grid flexes continuously along the curved contours, cushioning peak impact and dampening severe vibrations.

Home Products Type-TRG

TRG-V & TRG-H Covers Resilient Coupling Type-TRG

Alloy Steel Tapered Spring Grid

Complete Mechanical Power Transmission Solution

Progressive Flexibility & Shock Absorption for Severe Drives

Dual Cover Architecture: Available in Horizontal Split Cover (Type H) for swift maintenance and Vertical Split Cover (Type V) for compact high-speed applications.

Dampens 80% Peak Shock: High-tensile spring steel element flexes under sudden impact overloads, protecting expensive gear teeth and motor bearings.

Zero Machine Disturbance Maintenance: On Type H couplings, the split cover and grid spring can be replaced easily without moving the driving or driven equipment.

Positive Grease Sealing: Equipped with precision oil seals, gaskets, and lube plugs to retain grease and prevent contamination from dirt and moisture.

View Dimension Chart Request Quotation / RFQ

Field Proven Deployments

Industry Applications for Type-TRG

Ideal for heavy power transmissions subjected to frequent starts, reversing cycles, and shock overloads.

Steel Rolling Mills

Mill gearbox, pinch roll, roller conveyors & roughing stands

Cement & Minerals

Raw mill & coal mill drives, primary jaw crushers & hammer mills

Thermal Power

Boil mill pulverizers, heavy fuel conveyor & slurry pump lines

Heavy Cranes & Winches

Mine hoists, overhead conveyor head pulleys & material handling

Power Rating

0.45 – 261 kW

kW rating at 100 RPM reference

Max Speed Limits

Up to 5,800 RPM

Available in Type V and Type H frames

Bore Capacities

Up to 234 mm

Sizes TRG-105 to TRG-492

Technical Dimension Chart

TRG Resilient Coupling Dimensions (Type V & Type H)

Power in kW @ 100 rpm | Dimensions in mm | Weight in Kg

Size	kW @ 100 rpm	Max rpm (V)	Max rpm (H)	Pilot Bore	Max Bore	ØA (V)	ØA (H)	ØB	L	W	M	G	Wt kg (V)	Wt kg (H)
TRG-105	0.45	3600	5000	10	28	105	104	38.3	45	57	53	0.80	3	3
TRG-120	0.70	3350	5000	12	38	120	123	38.3	58	65	53	0.80	4	4
TRG-144	1.50	4500	3350	16	42	144	127	44.5	62	65	60	0.80	5	5
TRG-172	2.20	3600	2500	16	52	172	159	51.0	87	66	60	0.80	8	9
TRG-190	3.40	3300	2100	16	58	190	178	51.0	85	85	80	0.80	11	13
TRG-197	4.00	3100	2200	16	65	197	193	57.0	100	85	80	0.80	17	16
TRG-222	7.00	2600	1600	25	80	222	222	63.5	120	87	80	0.80	19	20
TRG-254	9.40	1700	2300	25	95	254	245	76.0	143	87	81	0.80	27	27
TRG-276	13.60	1600	2000	25	110	276	267	89.0	165	87	81	0.80	43	39
TRG-295	28.50	1500	1500	38	104	295	275	102.0	155	138	129	1.60	47	54
TRG-324	33.90	1300	1300	50	124	324	324	101.5	187	157	148	1.60	67	63
TRG-338	48.90	1200	1300	50	124	338	338	101.5	184	157	148	1.60	74	72
TRG-375	67.50	1100	1400	50	148	375	381	114.0	222	159	148	1.60	108	104
TRG-425	93.80	1000	1200	50	170	425	425	127.0	254	160	148	1.60	149	149
TRG-432	179.00	800	1200	75	157	432	501	140.0	180	180	180	3.20	180	234
TRG-492	261.00	1100	700	85	173	492	552	152.5	180	180	180	3.20	318	218

* Max. Bore for H Type: TRG-432 = 202 mm & TRG-492 = 234 mm.

# Dimension B for H Type: TRG-432 = 302 mm & TRG-492 = 349 mm.

Fast Sizing Support

Request Quotation for Type-TRG

Specify your TRG size (TRG-105 to TRG-492), cover type (Type V or Type H), kW @ RPM, or shaft diameters.
